Mid Jbox JBBM01-**
Negative JBBN01-**
连接器接触电阻
Typical contact resistance
铜,镀锡 Copper,Tin plated
II
6(W)*0.2-0.4(T)
Clamp
汇流条尺寸
Ribbons size(mm)
汇流条连接
Connection of bus ribbons
IP67(In potting)
电缆外径
Range of cable gland(mm)
图示
Drawing
UL94-V0
-40℃…+85℃(IEC）
2.5/4.0mm2
Each 1PC
110℃(IEC)
O.D.:5.5
环境温度范围
Ambient temperature range
金属导体材料
Contact material
保护等级
Degree of protection
安全等级
Safety degree
PPE/PA
10A(Diode 15A)
1000VDC
6kV(50Hz,Imin)
≤ 0.25mΩ
温度上限
Upper limiting temperature
接线盒本体材料
BOX Material
额定电流
Rated current
额定电压
Rated voltage
测试电压
Test voltage
薄膜专用接线盒
BIPV Junction Box
产品规格
Product Specifications
适配电线规格
Suitable cable cross sections
二极管数量
Diode Number
阻燃等级
Flame Class薄膜专用接线盒
BIPV Junction Box
Positive JBBP01-**
薄膜专用接线盒
BIPV Junction Box
产品应用
Production Application

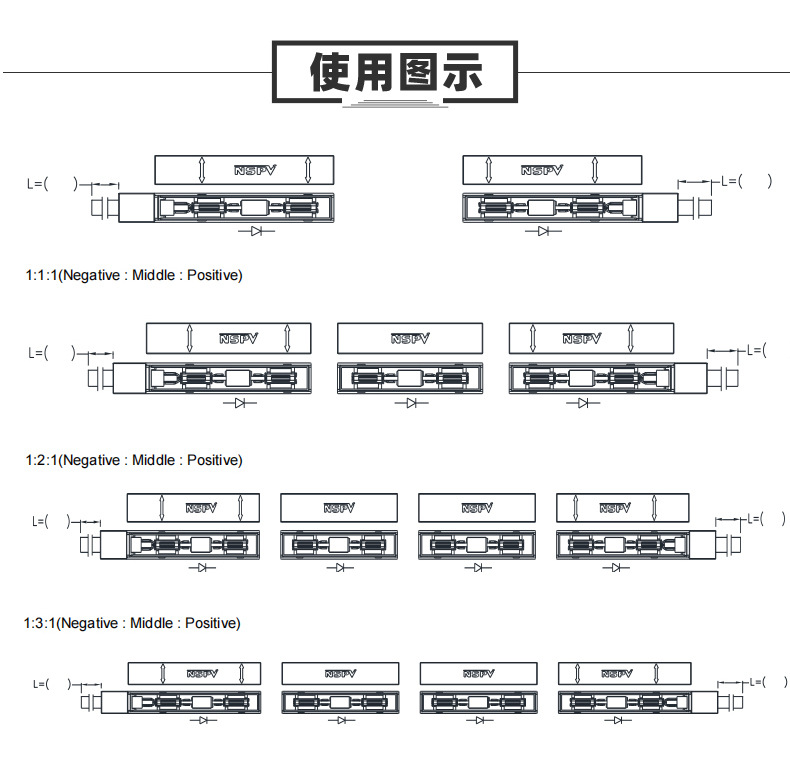

1:0:1(Negative : Middle : Positive)
1:1:1(Negative : Middle : Positive)
1:2:1(Negative : Middle : Positive)
1:3:1(Negative : Middle : Positive)
薄膜专用接线盒
BIPV Junction Box

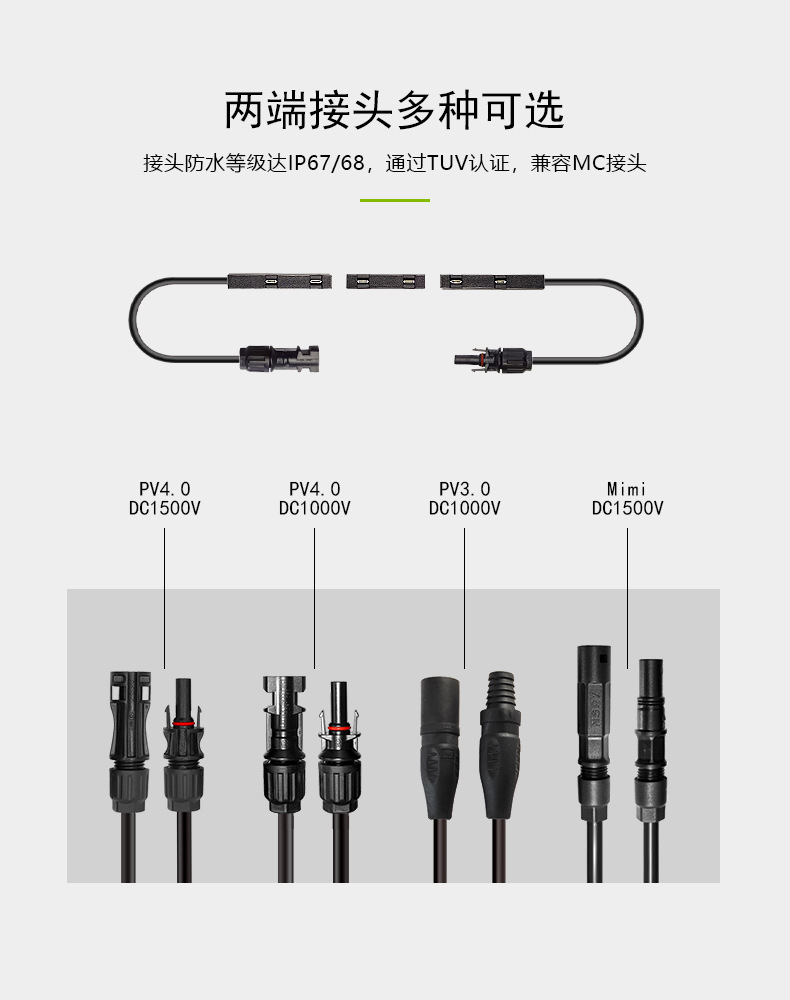

连接器的搭配
Connector Selection
Newsun 1000VDC cable connector:
Newsun 1500VDC cable connector:
Newsun 1000VDC PV3.0 cable connector:
Newsun 1000VDC Mini cable connector:
EVO cable connector
